GOV.UK Web log data
Context
Web log data is collected by anyone visiting www.gov.uk. The data is not constrained by consent, so can give a full view of the reach of www.gov.uk as well as putting consented data into context. This means that it can help us understand the consented web analytics data we collect using GA4 - for example, understanding cookie opt in rate.
Building the data pipeline
The fastly data is exported from AWS to our primary data storage and analytical environment, BigQuery. Each morning the previous day’s raw web log data arrives via this pipeline and is housed in BigQuery in the ‘govuk-production’ project.
As the raw web log data is not consented, access to the data in this project is restricted to only those who require it. The data exists in a partitioned table, with a partition expiry of 7 days. This ensures that data older than 7 days is deleted, and we don’t retain any more non-consented data that we have to.

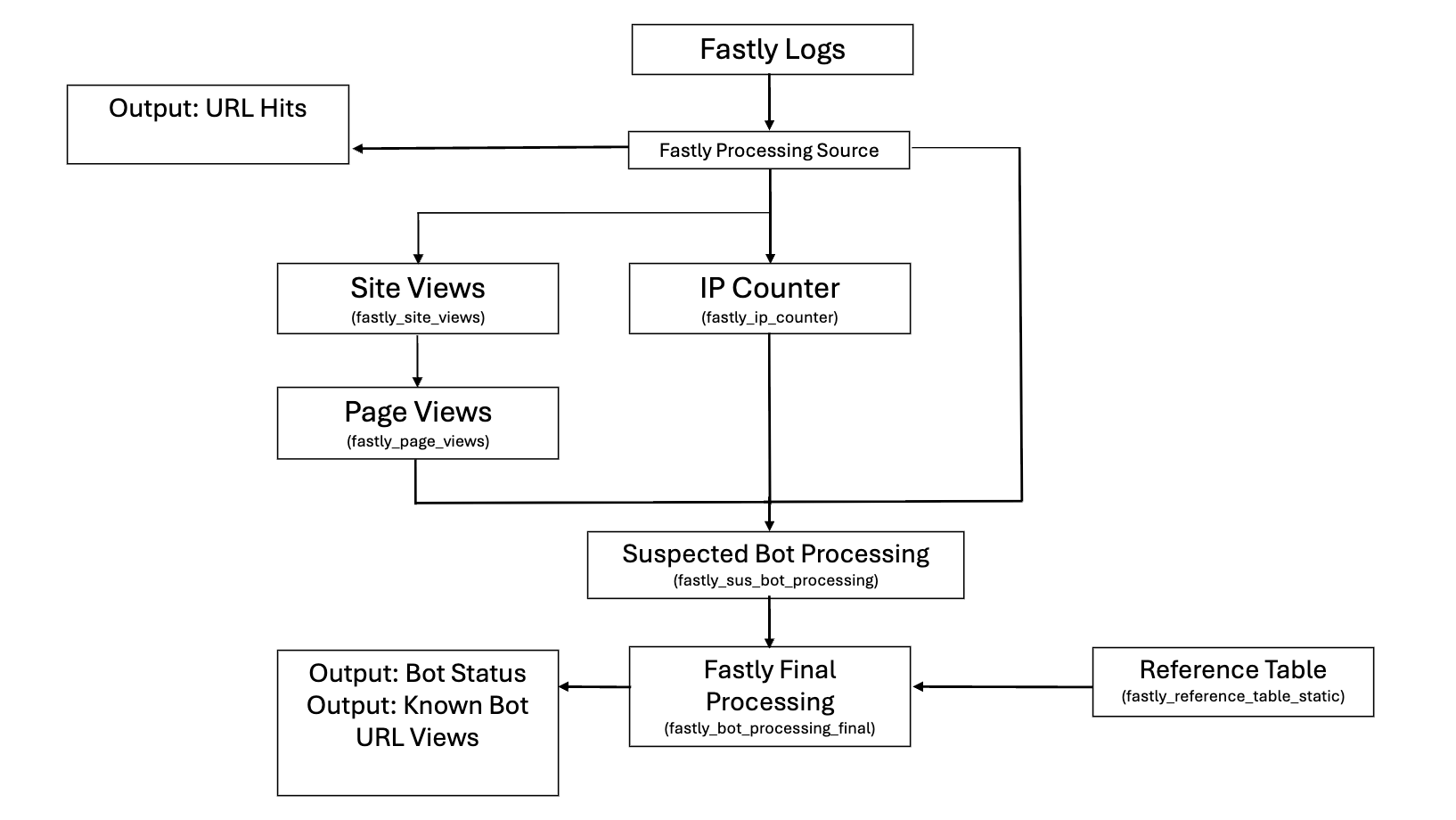

Dataform workflow
Step 1
The Dataform workflow sits within the gds-bq-processing project under the workspace name bot_traffic_processing. It begins by defining the raw web logs data as a source file - fastly_logs.sqlx and the known bot agents as a source file - fastly_reference.sqlx.
Step 2 - Initial Processing
The most recent partition_date not already present in ‘fastly_processing_dev’ is selected from ‘fastly_logs’.
Initial processing is performed in ‘fastly_processing_source.sqlx’. All records from fastly_logs are selected and filtered using ‘_PARTITIONTIME’ from the ‘process_partition’ table created by ‘process_date.sqlx’, ensuring that only the current partition is processed.
To protect user privacy, activity is identified using ‘md5_hashed_value’, an anonymised identifier created by hashing a combination of the user’s IP address and user agent. This enables user-level behavioural analysis while preventing access to the original identifying values contained within the raw web log data.
Additionally, the query applies three filters to return only successful web page loads, these filters are:
- 200 HTTP status code
- Payload size greater than 0 bytes
- Content type of html
The resulting dataset is stored as ‘gds-bq-processing-dev.fastly_processing_dev.fastly_bot_processing’.
Step 3 - Suspected bot/spam traffic filtering logic
The results from the initial processing are then filtered to exclude suspected bot/spam traffic through a few different methods. These are:
-
Users who have viewed a single page more than 10 times in a single day. This process happens in ‘fastly_page_views.sqlx’ and is stored as a view in ‘gds-bq-processing-dev.fastly_processing_dev.fastly_page_views’.
-
Users viewing more then 50 unique pages in a single day (defined as a concatenating of IP address and user agent). This process happens in ‘fastly_site_views.sqlx’ and is stored as a view in ‘gds-bq-processing-dev.fastly_processing_dev.fastly_site_views’.
-
IP addresses which have requested any single page, during a single second, at least 5 times on the same day. This process happens in ‘fastly_ip_counter.sqlx’ and is stored as a view in ‘gds-bq-processing-dev.fastly_processing_dev.fastly__ip_counter’.
The results are stored as a table in ‘gds-bq-processing-dev.fastly_processing_dev.fastly_sus_bot_processing’ and represent as a spam flag for each method, where 1 indicates a user has been flagged as suspected bot/spam traffic.
Step 4 - Known Bot Processing
Results from the suspected bot/spam traffic filtering logic are then processed to identify known bot traffic. This is achieved by matching user agents against the known bot reference data defined in ‘fastly_reference.sqlx’.
The classification logic gives precedence to known bot matches. If a user agent matches a pattern in ‘fastly_reference_table_static’, the record is assigned a status of ‘known_bot’, regardless of any spam flags that may also be set. Spam flag checks are only applied when no known bot match is found, resulting in a status of ‘suspected_bot’ where applicable. Records that meet neither condition are classified as ‘not_bot’.
Multiple patterns and tags can be associated with a single record. These values are aggregated into alphabetically ordered, comma-separated lists, providing a consolidated view of all reference table matches that contributed to the classification.
Step 5 - Outputs
There are currently three outputs from the Dataform workflow, all of which are stored in ‘gds-bq-data.govuk_weblogs’:
-
weblog_urls: This table contains the total number of page views and users, grouped by ‘partition_date’, ‘device_type’ and ‘cleaned_url’.
-
fastly_known_bot_url_views: This table contains the total number of page hits for each URL viewed by known bots of interest (bingbot, PerplexityUser, Gemini-Deep-Research, Google-GeminiNotebook, meta-externalfethcher\/, Claude-User and ChatGPT-User) all other known bots are grouped together as ‘other_bots’. The table is grouped by ‘partition_date’ and ‘cleaned_url’.
-
fastly_bot_processing_final: This table contains the final classification of each ‘md5_hashed_value’ (anonymised user identifier) as ‘known_bot’, ‘suspected_bot’, or ‘not_bot’. It also contains the three spam flags used to identify suspected bot/spam traffic (site_spam_flag, page_spam_flag, and ip_spam_flag), along with any matching reference table patterns and tags. Where multiple patterns or tags are matched, they are aggregated into alphabetically ordered, comma-separated lists. The table is partitioned by ‘partition_date’.
